A Drying Cabinet is used to dry low volumes of cannabis buds of around 7 kg (15 lbs) of dried cannabis per drying cycle (3 to 15 days). You can fully control the drying cabinet with a control panel on the drying cabinet or with the ABC software on your phone, tablet or computer.

The Drying Cabinet can be used for both medical and recreational cannabis production. The drying Cabinet can be used for curing as well.

To make sure the drying cabinets can be used for medical cannabis production, we are in the process of full GMP cerfication for this product. The drying cabinets will soon be available with all the GMP-protocols for operating and cleaning the machine. We can even implement these GMP-protocols in your existing GMP-system.

Read all about our drying methods and our drying solutions on this page.

Cannabis Drying Cabinet Components


Components of a full drying cabinet:

A. 36 Canna-Trays
B. 2 HEPA-filters
C. 2 filter pads
D1. First ventilator
D2. Second ventilator
E. Adsorption dryer
F. Cooling unit
G. Automatic roller shutter or door
H. Isolation panels
I. ABC-software on a tablet



How is the Cannabis drying cabinet used?

  • On the ABC software of the remote device or touch panel on the cabinet, the operator opens the roller shutter or door.
  • 2 piles of Canna-Trays are placed on the HEPA filter & filter pad. When the piles are full, a HEPA-filter is placed on the 2 piles of Canna-Trays.
  • On the remote device /touch panel, the manager closes the roller shutter or door.
  • The drying process is activated and managed on the software of the remote device.
Drying cabinet for medical cannabis
The drying cabinet for medical
cannabis has a stainless steel door.

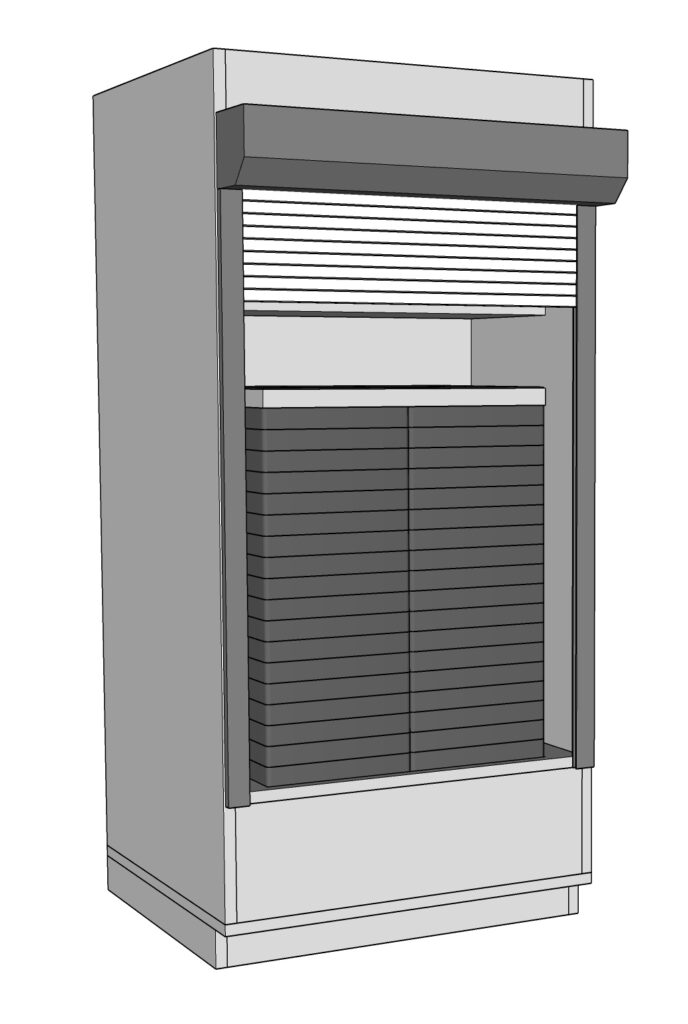

Drying cabinet for recreational cannabis
The drying cabinet for recreational
cannabis has a roller shutter.
Cannabis-Drying-Cabinet

Drying cabinet – Details of how it works:

  • The first ventilator (D1) sucks the process air (1) through the set of Canna-Trays (A) and filters (B&C).
  • The air (2) dries the cannabis by adsorbing moisture from the cannabis.
  • A part of this air (3) will circulate and enter the Canna-Trays (A) again.
  • Another part of the air (4) goes through the adsorption dryer (E) where the air heats up and water gets adsorbed from the air.
  • The air from the adsorption dryer (5) mixes with the circulating process air (3).
  • A part of this blended air (6) gets sucked through the cooling unit (F) by the second ventilator(D2) where the air is brought to the desired temperature again.
  • The dried air (6) mixes with the circulating process air (3) and goes through the cannabis again.
Drying automatically

To arrange drying automatically; the temperature, humidity levels and amount of airflow are being controlled. Therefore, Cannabis-Drying.com developed the ABC-processor. The ABC-processor allows you to dry as fast or slow as desired, drying in 3-15 days is possible. The ABC-processor is operated by a touch panel on the installation or by a mobile device. Each of our installations has a different version of the ABC-software.

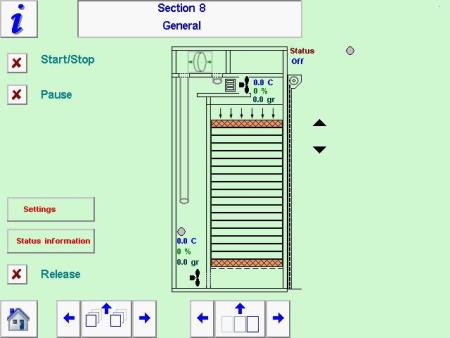

ABC-processor for the drying cabinet:

  • As air is extracted top-down through the product, the desired airflow is controlled by adjusting the RPM of the ventilators.
  • 2 sensors to measure temperature and absolute humidity. The first sensor measures the ingoing air, the second sensor measures the outgoing air.

Read all about our drying methods and our drying solutions on this page.
